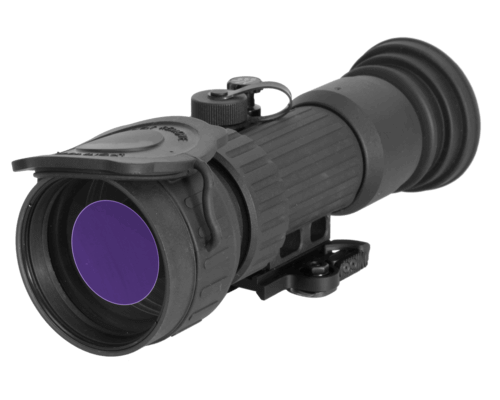

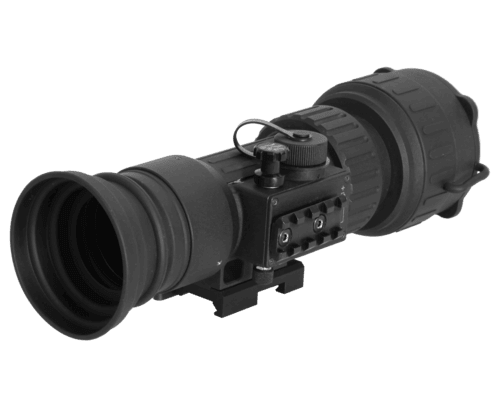

ATN PS28-3P Night Vision Clip-On Systems

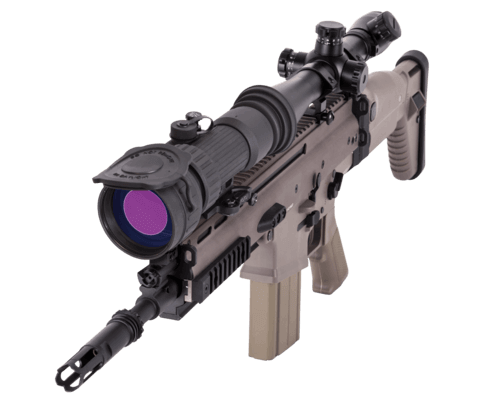

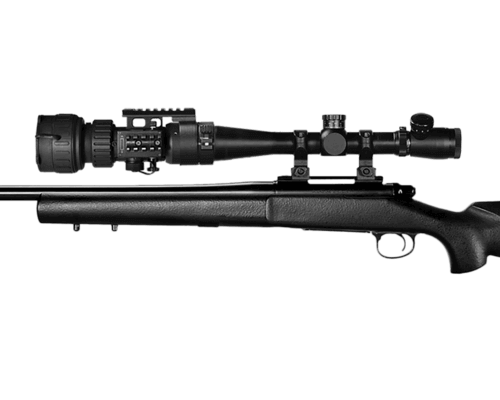

New Design – improved  performance. The next generation of our popular PS22 night vision clip-on line. The new PS28 gives your daytime scope Night Vision capability in a  matter of seconds. The ATN PS-28 mounts in front of a daytime scope to enable nighttime  operation. No shift of impact, no need to rezeronor change of eye relief  occurs. The ATN PS-28 uses the latest in image intensifier tube  technology for outstanding resolution and performance.



TECHNICAL  SPECIFICATIONS

Generation 3P Range of Focus 0.25 yard/m to infinity

Magnification 1 X Resolution 64 - 72 lp/mm FOV 13 ° Total Darkness

IR System Yes

Diopter Adjustment No

Automatic Brightness Control Yes

Bright Light Cut-off Yes

Infrared Illuminator Detachable IR Indicator No

Low Battery Indicator No

Power Supply 1 x 3V (CR123A) Battery Life 50 hours

 Environmental Rating Water resistant Operating Temperature -40°F to 122°F/-40°C to 50°C

Storage Temperature -58°F to 158°F/-50°C to 70°C

Dimensions 7.7" x 3.5" x 3"/195 mm x 89 mm x 76 mm

Weight 1.85 lbs / 0.84 kg

Available for Export No *

This product is subject to one or more of the export control laws and  regulations of the U.S. Government and it falls under the control  jurisdiction of either the US Department of State or the US  BIS-Department of Commerce. It is unlawful and strictly prohibited to  export, or attempt to export or otherwise transfer or sell any hardware  or technical data or furnish any service to any foreign person, whether  abroad or in the United States, for which a license or written approval  of the U.S. Government is required, without first obtaining the required  license or written approval from the Department of the U.S. Government  having jurisdiction. For further information please contact ATN.



Whats in box

IR850-B1

Warranty Card

Instruction Manual

Lens Tissue

One Lithium Battery (CR123A)

 Remote Control Unit

Mil-Spec Hard Case
