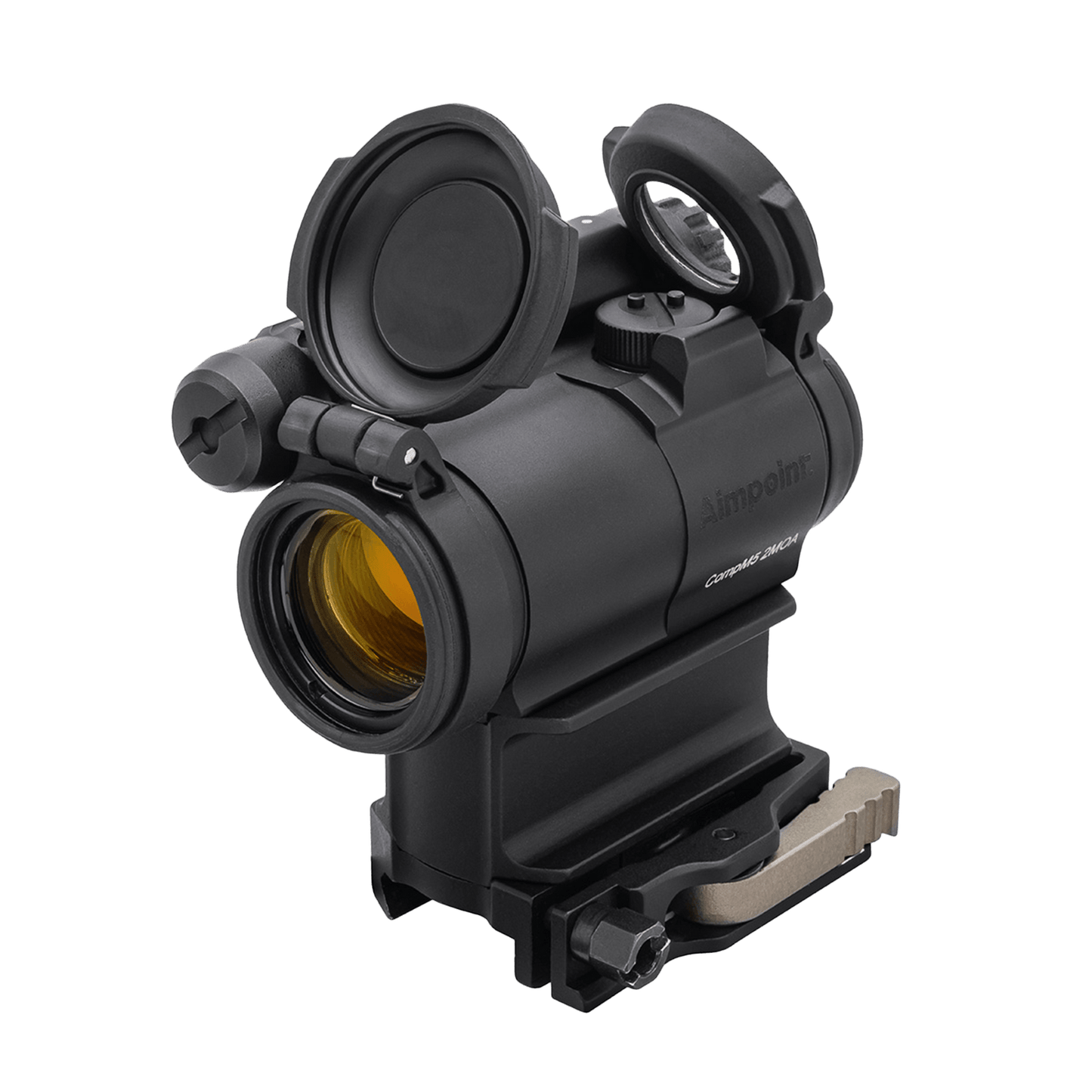

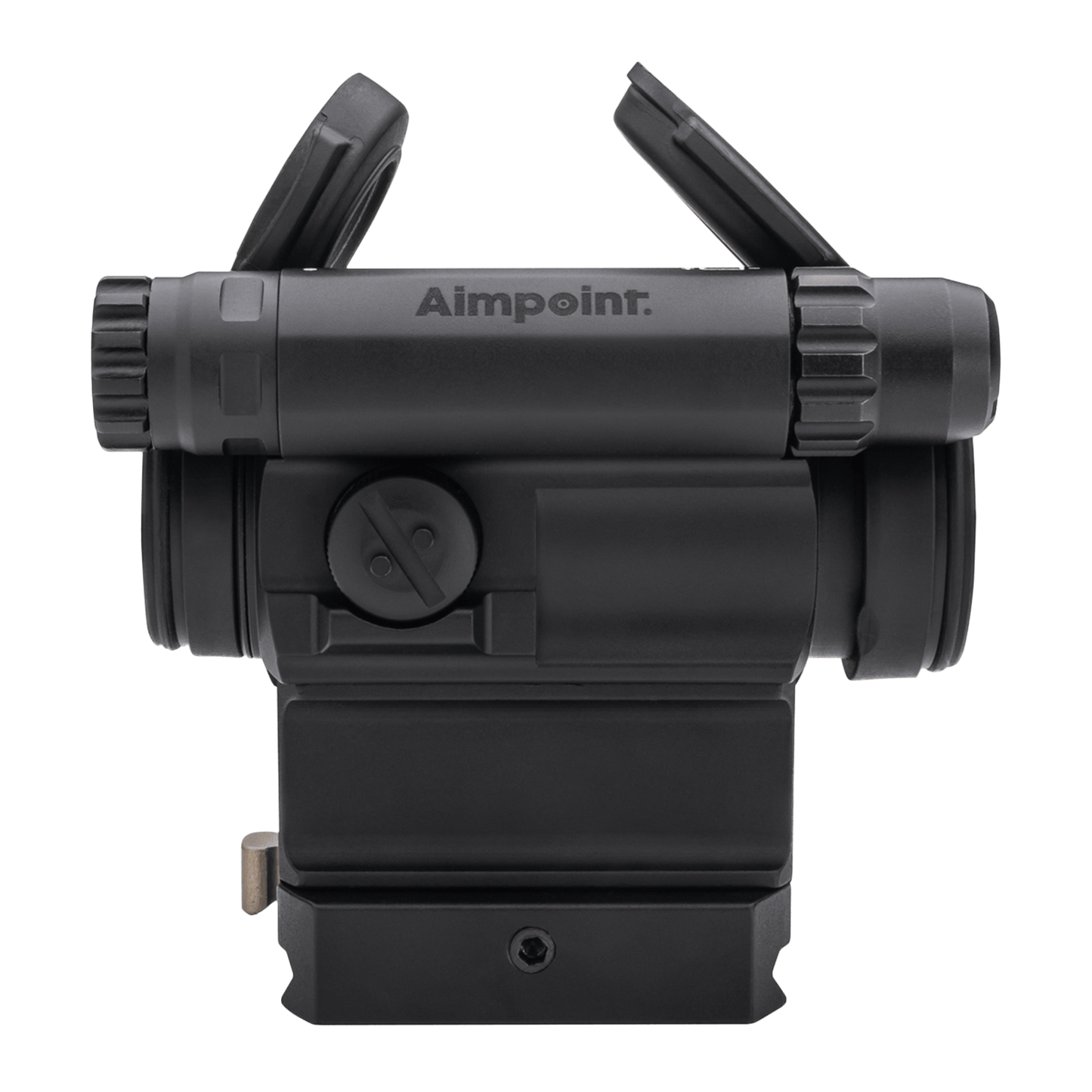

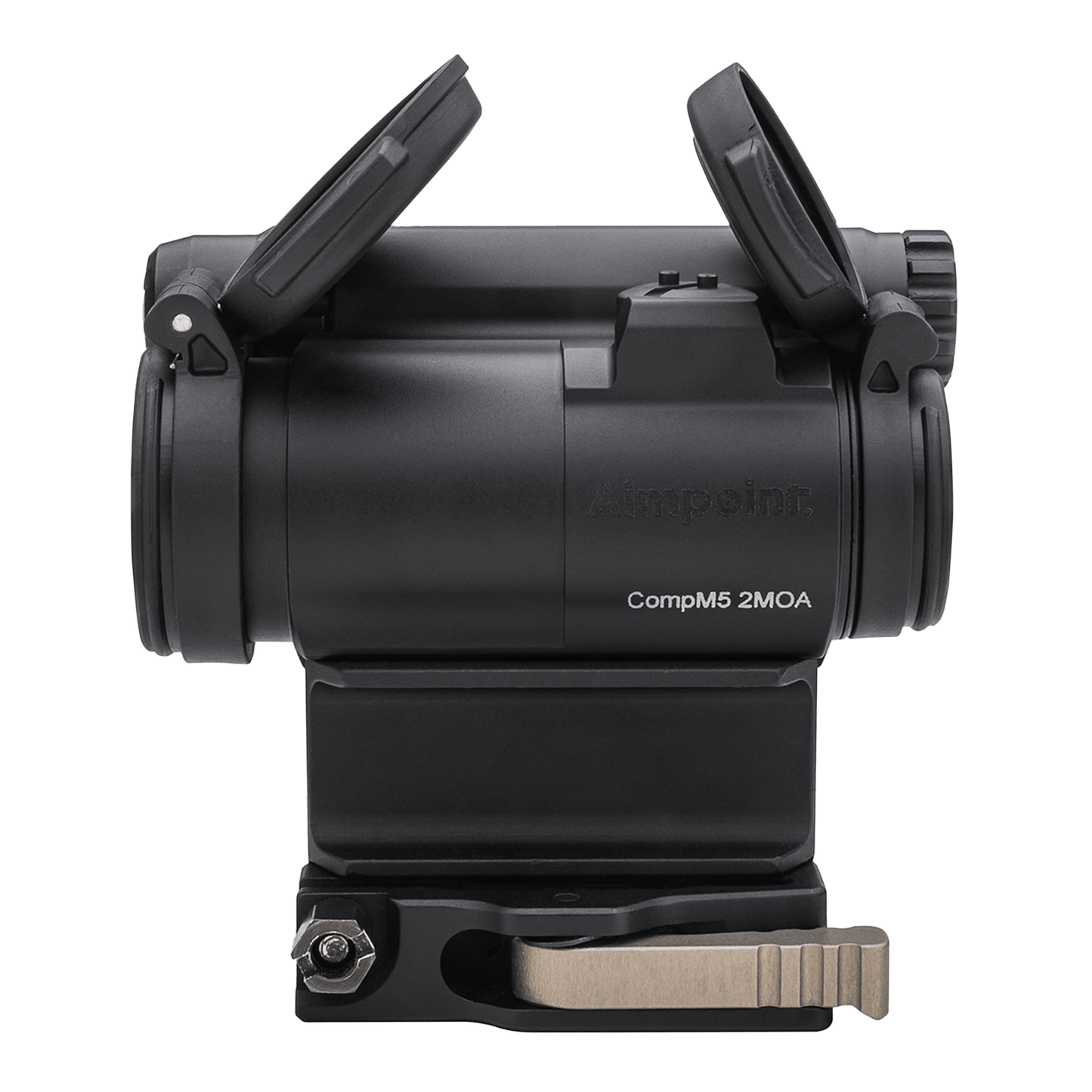

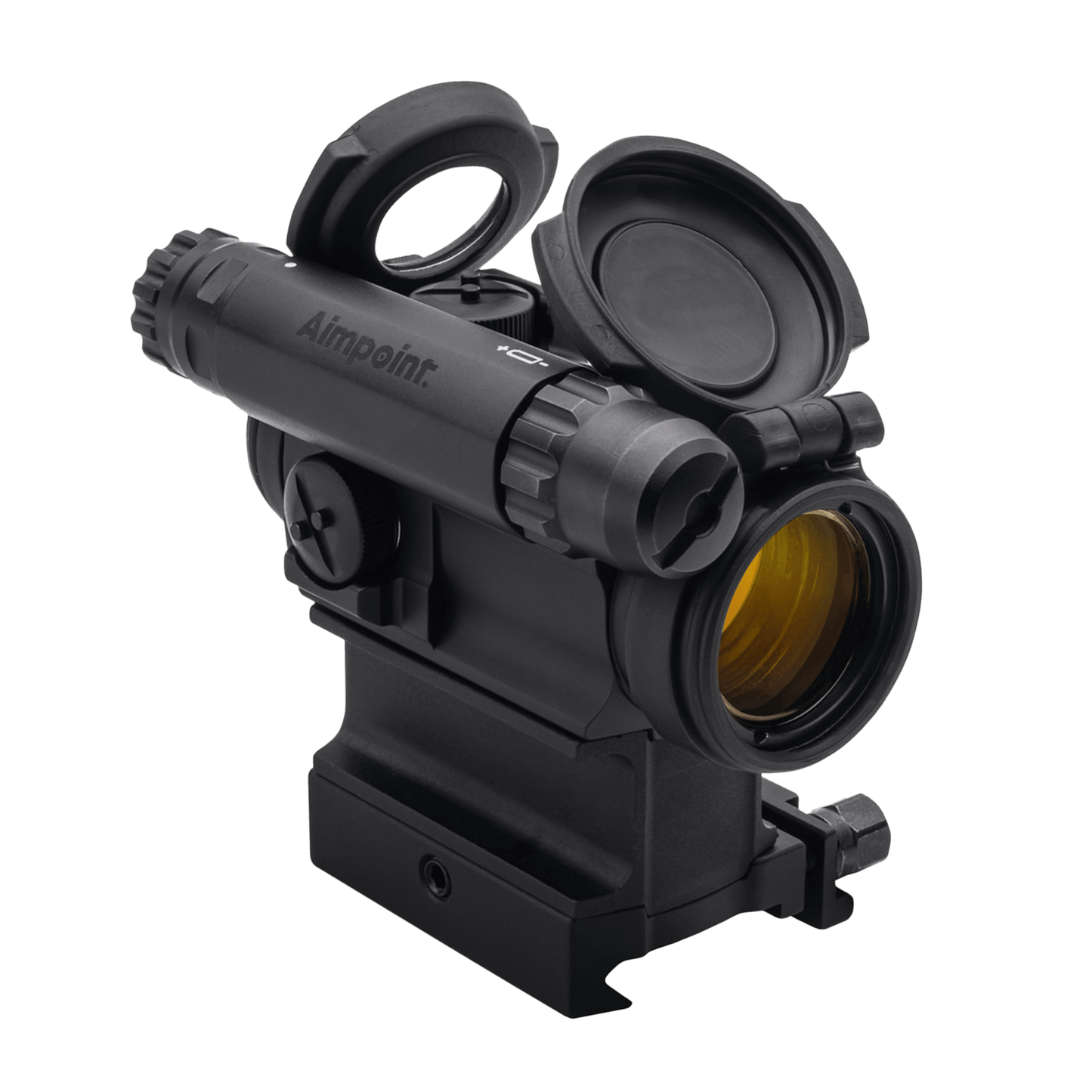

CompM5™ 2 MOA - Red Dot Reflex Sight with 39 mm Spacer & LRP Mount
CompM5™ 2 MOA - Red Dot Reflex Sight with 39 mm Spacer & LRP Mount
SKU:195750
Out of stock
Couldn't load pickup availability
Collapsible content
Description
2 MOA - Red Dot Reflex Sight
with 39 mm Spacer & LRP Mount
- 2 MOA dot size
- 50,000 hours (over 5 years) of constant operation
- 4 night vision compatible settings and 6 daylight settings
- Weight 238 g (8.4 oz) sight only
- Submersible to 45 meters (150 feet)
- Height of Optical Axis 39 mm (1.5 in) measured from top surface of mechanical interface
- Advanced optical lenses for enhanced light transmission and ultimate dot clarity
INCLUDES: LRP Mount, Spacer 39 mm, Flip-up Lens Covers, AAA Battery, Aimpoint® Tool Select dot size 2 MOA Select mounting solution with 39 mm Spacer & LRP Mount Item No. 200386 Register sight Where to buy Application areas Sport Shooting Home Defense Law Enforcement
Product
overview

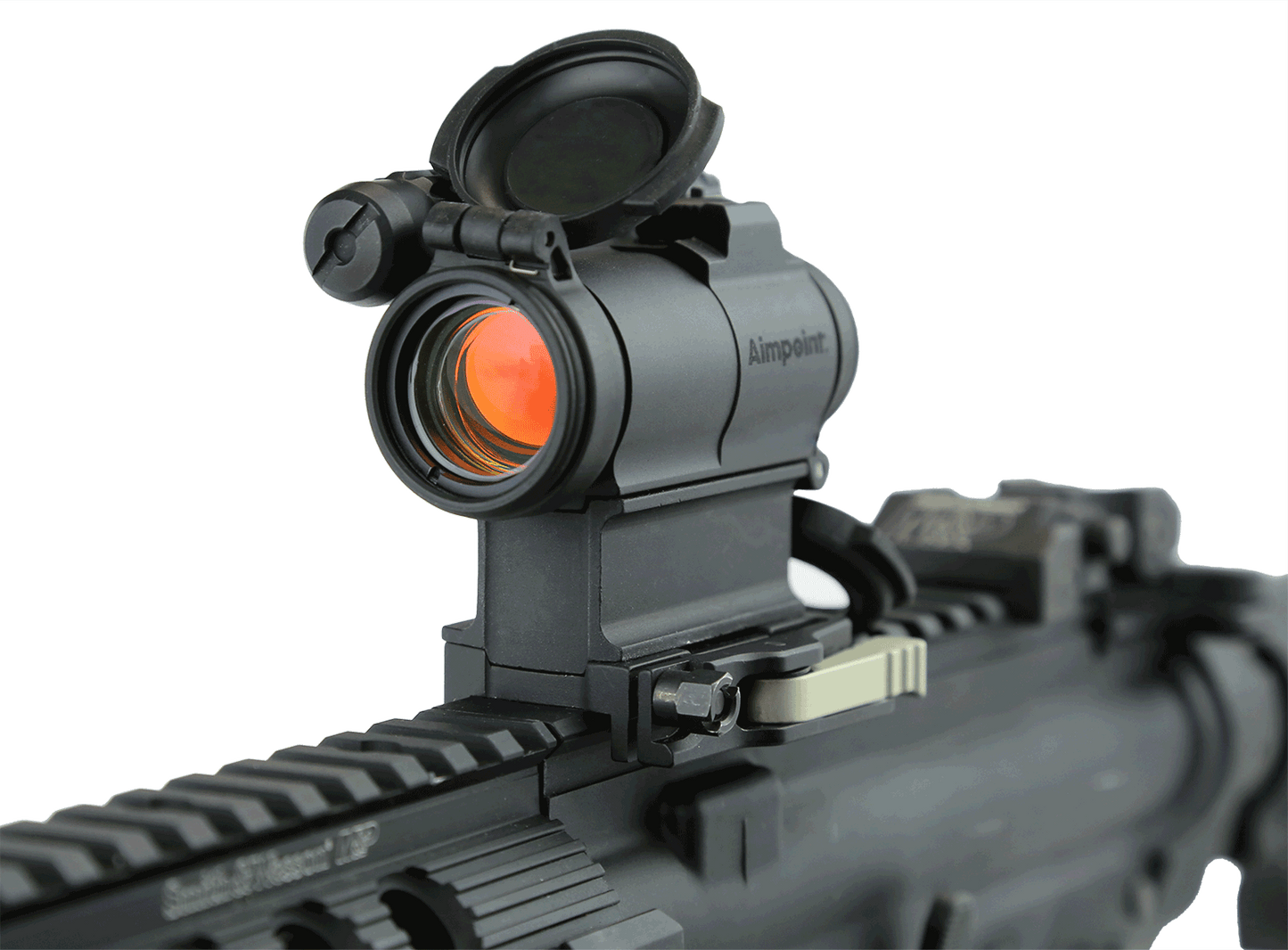

The Aimpoint® CompM5 is a compact, lightweight, and extremely rugged red dot optic in the Comp™ series of sights. The CompM5™ red dot sight was designed to take up minimal space on the weapon platform while still offering extreme ruggedness and durability. New innovative lenses with enhanced reflective coatings, radically improve the shape of the 2 MOA dot. This makes this optic match perfectly with the 3XMag-1 and 6XMag-1 magnifiers. This is the standard configuration of the CompM5 which contains the sight, a LRP mount and a 39 mm spacer. The sight is also equipped with flip-up lens covers, the front lens cover is black and the rear transparent. The CompM5 sight has a high battery compartment while the CompM5s™ has a low battery compartment. The CompM5 is a high performance sight developed to withstand extremely tough handling and environmental situations without adding much weight to the user’s equipment. Show less Launched: 2017
Key
Features
- High battery compartment
- Mount base is keyed in to the body of the sight to absorb recoil
- LRP Mount and 39 mm spacer - AR15 ready
- Flip-up lens covers – front is solid, and rear is transparent – allowing the user to shoot with both eyes open and lens caps closed in an emergency situation
- Reinforced protection of the turrets for even greater ruggedness
- Matches perfectly with Aimpoint® 3XMag-1 and 6XMag-1 magnifiers
- Legendary Aimpoint ruggedness
- Anodized high strength aluminum housing, semi-matte black
- Both the standard mount and spacer can be changed to meet the demands of your specific mission and equipment.
- NVD compatible
Technical
Specifications
General Specifications Size L x W x H (mm) 85 x 54 x 72 mm Size L x W x H (in) 3.3 x 2.1 x 2.8 in Weight (g) 238 g Weight (oz) 8.4 oz Dot Size 2 MOA Magnification 1X - No Magnification Night Vision Device (NVD) Compatible Yes Transmission Average 70% in the range 420 - 900 nm Eye Relief Unlimited Mounting Solution LRP Mount and High Spacer (39 mm) Technology Specifications Operating Principle Reflex collimator sight - red dot sight Optical Specifications Dot Size 2 MOA Magnification 1X - No Magnification Night Vision Device (NVD) Compatible Yes Transmission Average 70% in the range 420 - 900 nm Eye Relief Unlimited Diode LED (Light Emitting Diode) totally eye safe Dot Color Peak Wavelength: 655 ± 15 nm Light Source Wavelength 650 nm red light Optical Coating Anti-reflex coating all surfaces and multilayer coating objective lens Optical Signature No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD Clear Aperature 18 mm / 0.7 in Parallax Absence of parallax - No centering required Power Source Specifications Battery Life 50,000 h at daylight setting 7 (15,000 Lux, room temperature) Battery Type AAA/LR3, Alkaline Power Switch Rotary Switch Night Vision Device (NVD) Settings 4 Daylight (DL) Settings 6 Physical Specifications Size L x W x H (mm) 85 x 54 x 72 mm Size L x W x H (in) 3.3 x 2.1 x 2.8 in Weight (g) 238 g Weight (oz) 8.4 oz Size L x W x H - Sight Only (mm) 83 x 40 x 41 mm Size L x W x H - Sight Only (in) 3.3 x 1.6 x 1.6 in Weight - Sight Only (g) 148 g Weight - Sight Only (oz) 5.2 oz Material Housing and Tube High Strength Aluminum Surface Finish Housing Anodized, Semi-Matte Color Housing Black Lens Covers Front Solid Flip-up Lens Cover and Rear Transparent Flip-up Lens Cover Material Lens Covers Thermoplastic Elastomer (TPE) Black, non-glare finish Material Mounting Solution Aluminum Height of Optical Axis 39 mm / 1.5 in measured from top surface of mounting platform Adjustment 1 Click = 10 mm at 100 m / 0.4 in at 100 yds Environmental Specifications Submersible to 45 m/ 150 ft Laser None Radioactive Material None Temperature Range Operation - 45°C to + 71°C / - 49°F to + 160°F Temperature Range Storage - 51°C to + 71°C / - 60°F to + 160°F Temperature Shock Operable after a temperature shock between - 45°C and + 71°C / - 49°F and + 160°F Humidity - Operable during and after Humidity. Limits: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic Shock - Operable before and after shock. Limits: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. Vibration - Withstands vibration. Limits: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction. Chemical Resistance Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents. Mounting Specifications Mounting Solution LRP Mount and High Spacer (39 mm) Torque - Mount to Sight 1.35 Nm / 12 in-lbs (Torx T10) All specifications are typical and subject to change without notice. © 2021 Aimpoint AB. Ed. 17-May-21
