ZEISS Thermal Imaging Devices

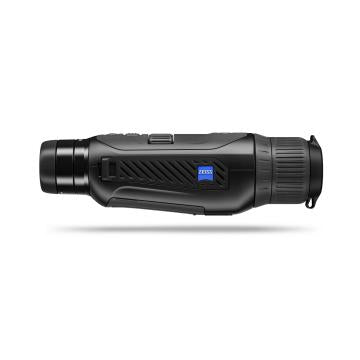

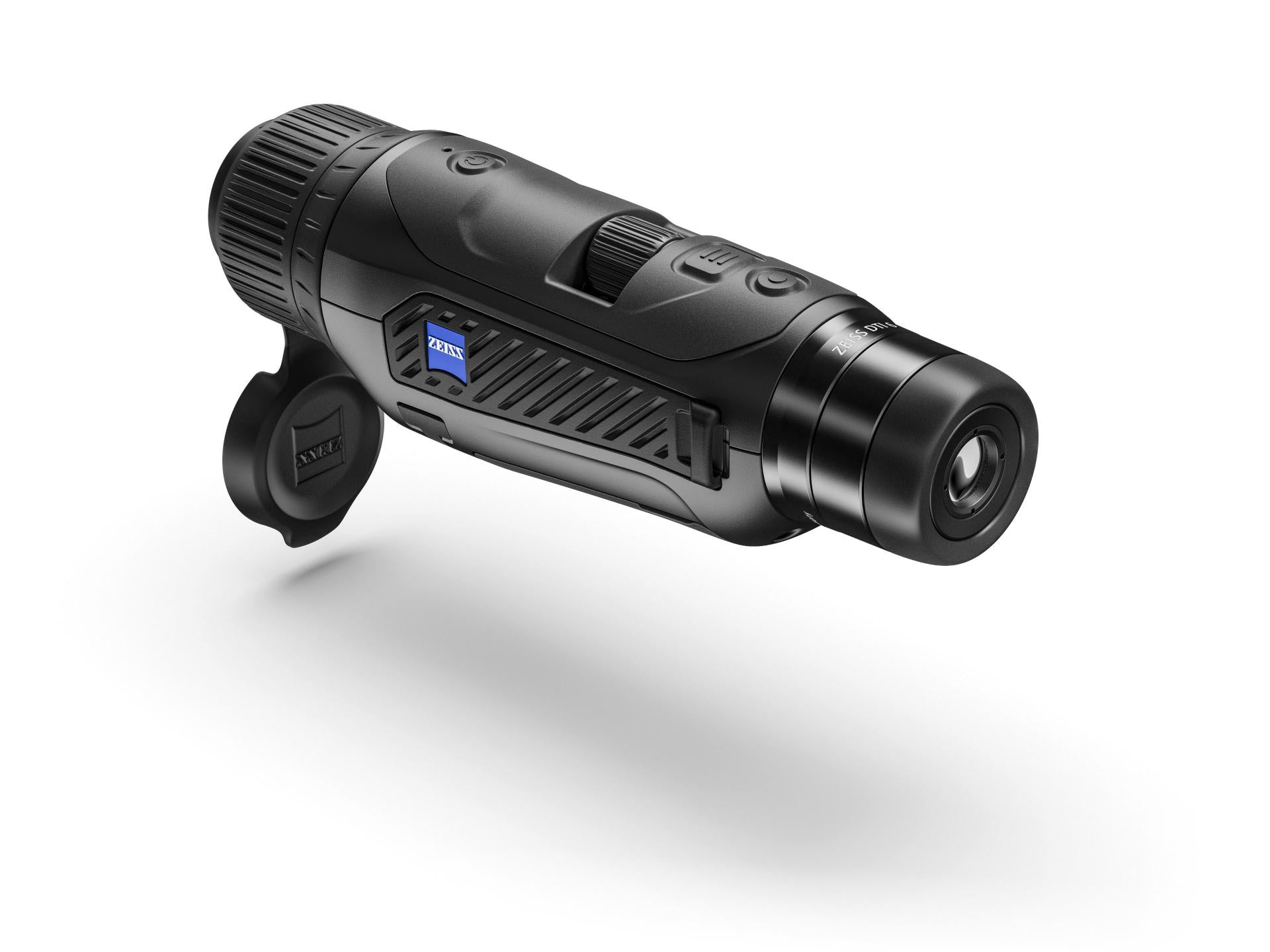

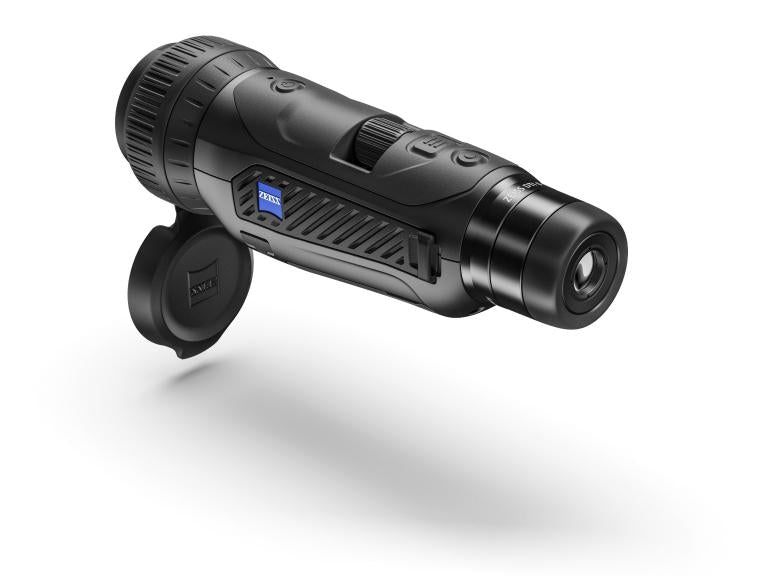

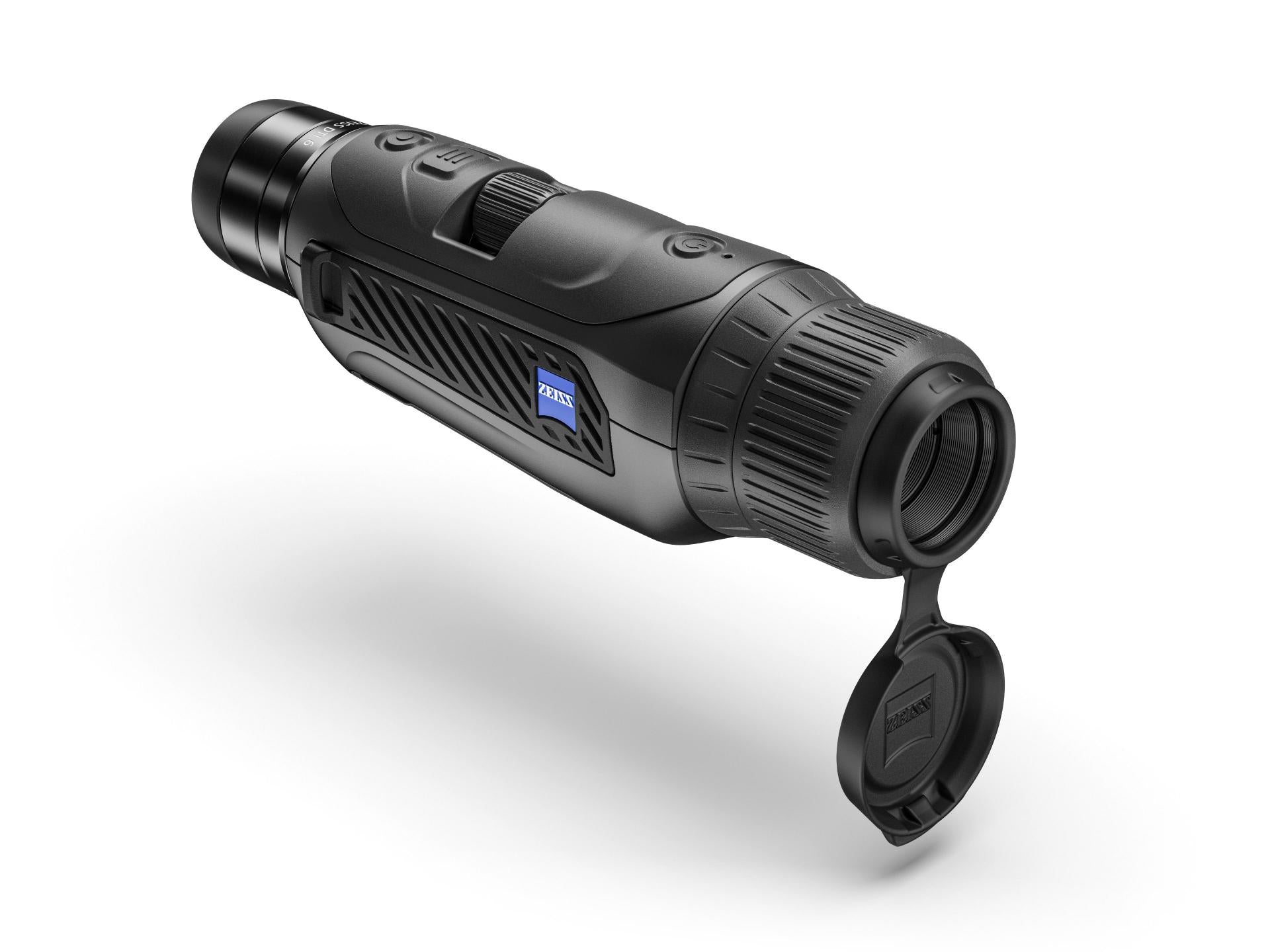

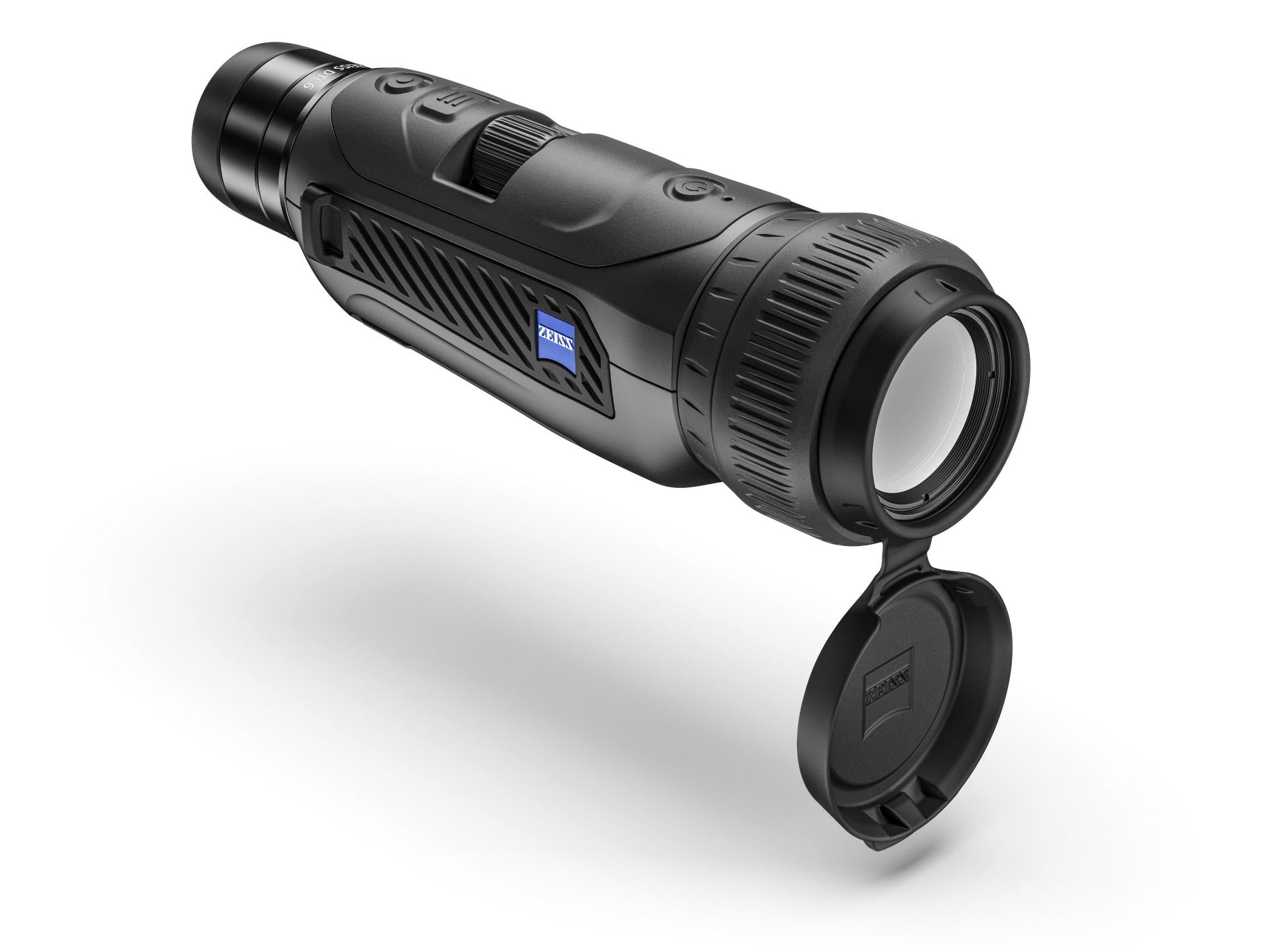

           ZEISS DTI 6

Identify key details in low thermal contrast.

The ZEISS DTI 6 guarantees clear detection and identification of  game, providing outstanding image quality, a wide field of view, and  prolonged runtime, allowing you to maintain focus and act confidently.



•         Exceptional Viewing Experience with ZSIP Pro
•         Removable Battery
•         High Resolution AMOLED Display



When hunting at night, every detail counts. With the DTI 6 thermal  imaging cameras, you won't miss a thing – ZEISS' innovative ZEISS Smart  Image Processing (ZSIP Pro) algorithm delivers a sharp, high-contrast  thermal image via the 640 × 480 sensor with 12 micron pixel pitch and  the 1024 × 768 HD AMOLED display. ZSIP ensures that you can perfectly  identify key details under difficult conditions and with low thermal  contrast.

The battery supports 6.5 hours of continuous use and can be quickly  and easily replaced on the go. Identify individual details even more  reliably in order to more quickly and reliably identify your target –  for maximum hunting success.



           Best-In-Class Operating Ergonomics

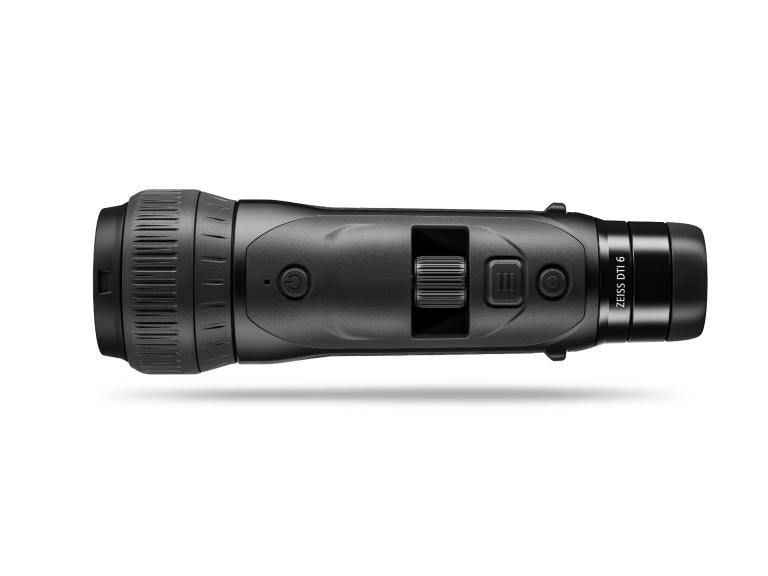

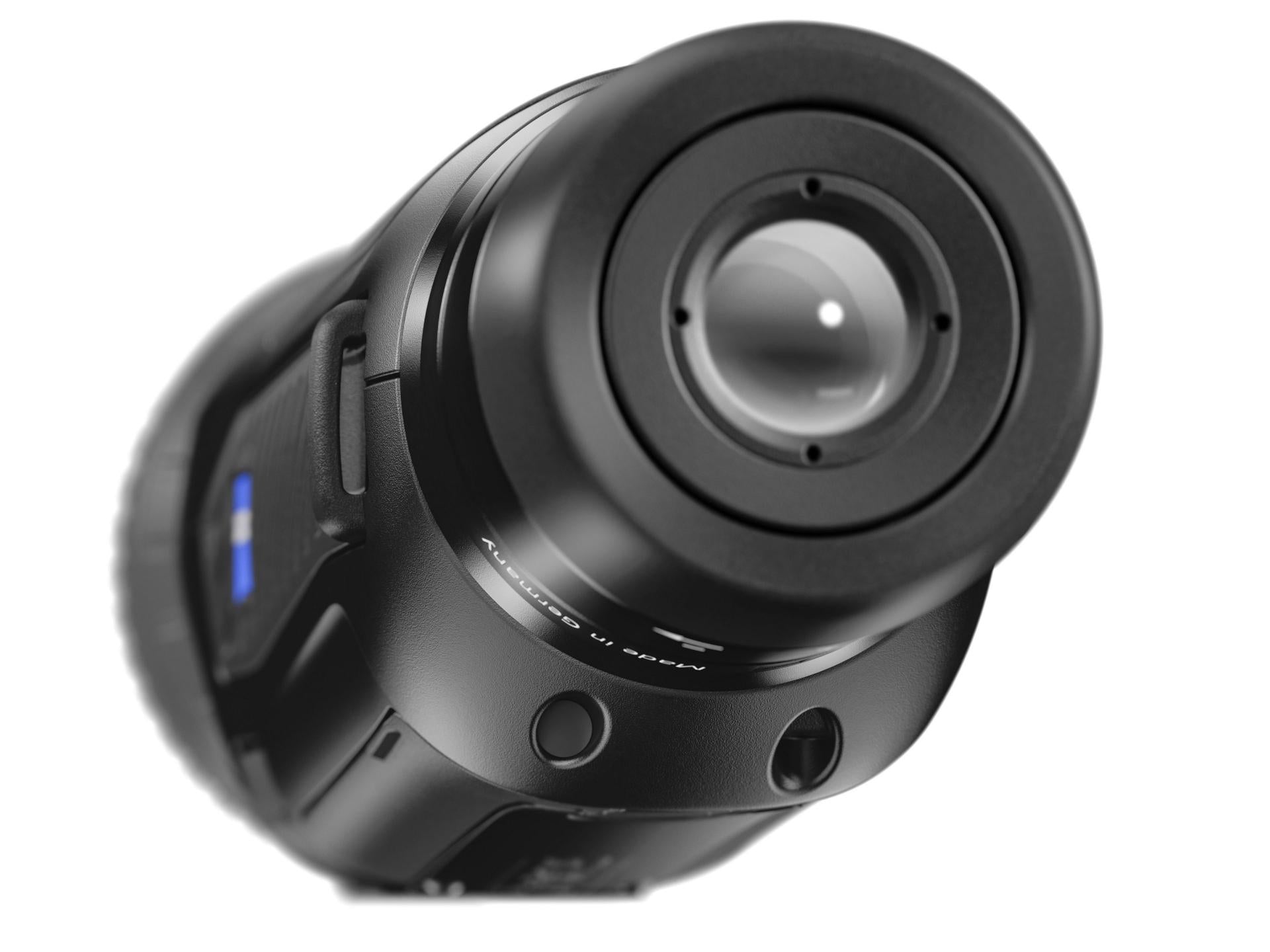

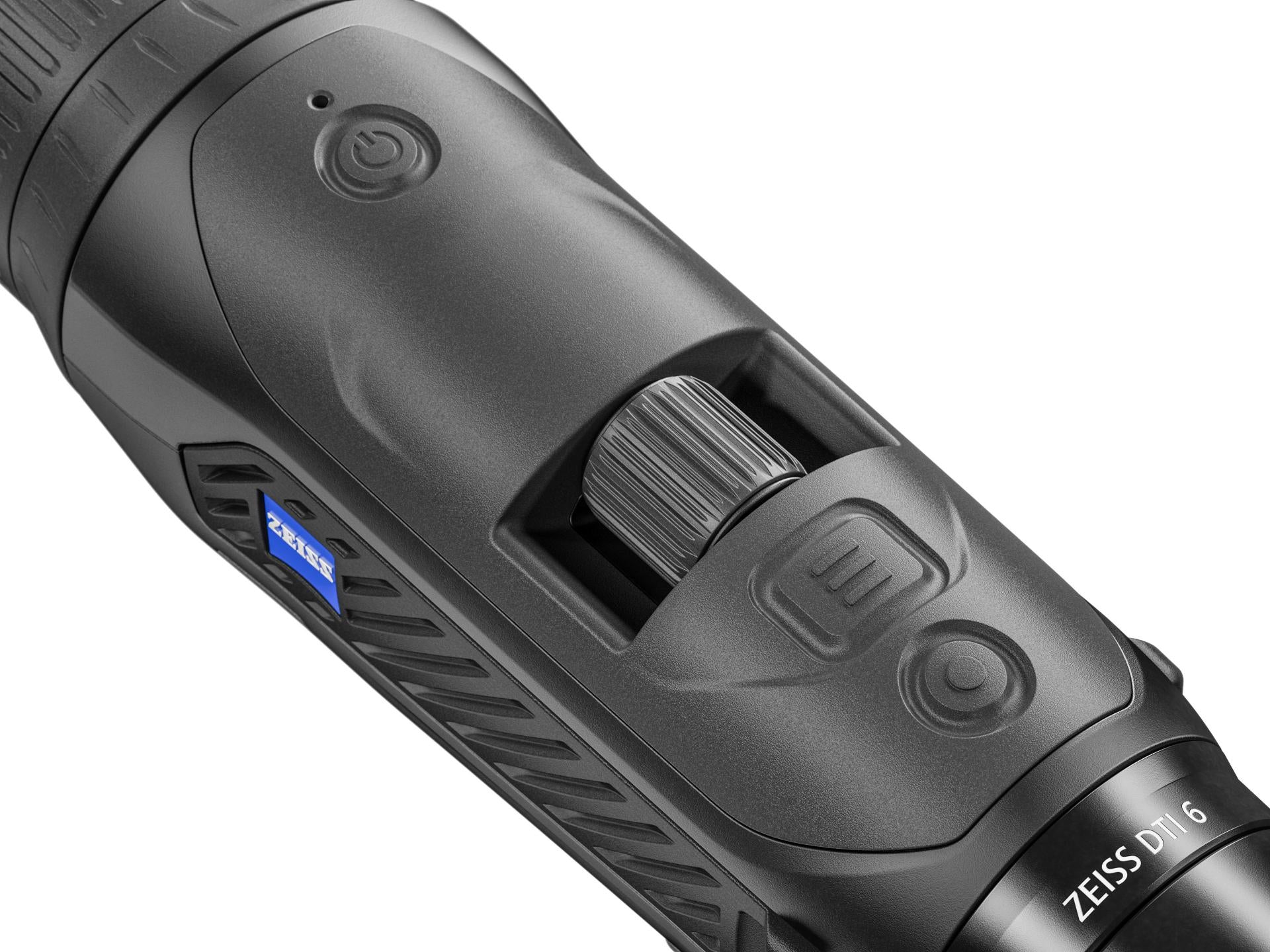

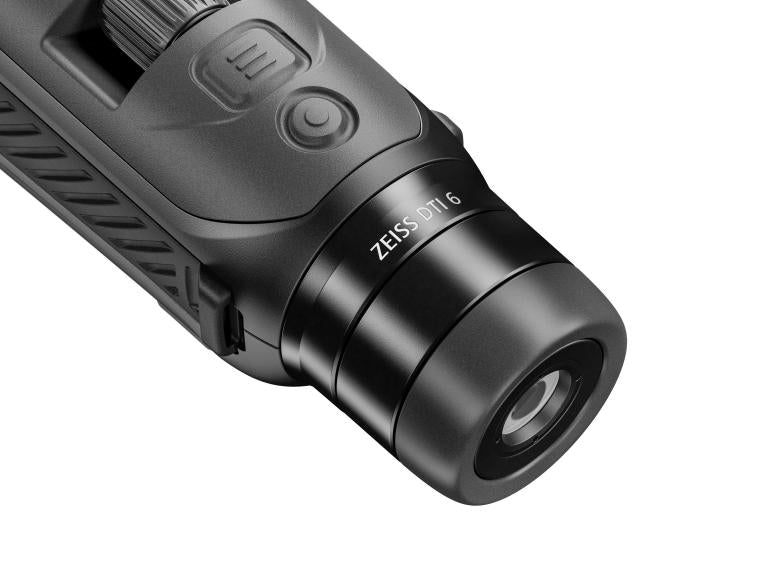

The newly designed scroll wheel allows both left-handed and  right-handed users to select zoom levels or menu items quickly and  precisely, even in stressful situations and even when wearing gloves.  The specially developed eyepiece with a large subjective field of view  is shaped like a pair of binoculars. It offers a particularly  comfortable and immersive viewing experience and allows the hunter to  fully grasp the situation.





           Innovative Power Management

The DTI 6's battery allows 6.5 hours of continuous observation  and is easily replaceable. It can also be recharged using a standard  power bank and thus ensures that the hunter never runs out of power. The  standby mode is activated contactless – if the DTI 6 is put down or  picked up, it switches itself off or on.



           Exceptional Viewing Experience with ZSIP Pro

The innovative smart image processing algorithm developed by  ZEISS (ZSIP) in Germany, in combination with the 640 x 480 sensor with  12 micron pixel pitch and the 1024 x 768 HD AMOLED display, delivers  high-contrast and detailed images. The ZSIP Pro provides the hunter with  the ability to detect and identify the game quickly and enables to make  the right decision with utmost confidence.



           Highly Customizable

Numerous configuration options allow you to customize the thermal  imaging camera to make the DTI 6 your very own. From selecting your  preferred zoom speed to adjusting the duration of the stand-by timer and  the LED configuration to creating your own color palettes, the DTI 6  can be customized to suit your own preferences and specific needs when  out hunting.



           Perfect Image Settings for Every Situation

The DTI 6 can be customized to suit your specific needs. Personal  settings can be saved to up to four observation profiles so that you  are equipped for any situation. In addition, you can always select  exactly the right lens for the current hunting situation from two  interchangeable lenses in the blink of an eye. In addition, the preset  Fog, Universal, Discover, and Identify observation modes help to tailor  the view to the respective hunting situation.



Focal Length



20 mm



Aperture



F1.0



Range



1,000 m (1,093 yd)



Field of View at 100 m (yds)



38 m (114 ft)



Objective Viewing Angle



22° x 16°



Sensor Resolution



640 x 480



Sensor Pixel Pitch



12 μm



NETD Value



≤ 35 mK



Display Resolution



1024 x 768



Display Frame Rate



50 Hz



Display Type



AMOLED



Optical Magnification



1.5 x



Maximum Digital Zoom



10 x



Zoom Steps



0.1 – 1.0 x



Battery Type



Li-Ion



Battery Run Time



6,5 h



Internal Memory



16 GB



WLAN



2.4 Ghz



Bluetooth



+



Livestream Function (Video & Photo)



+



Compatibility



ZEISS Hunting App | ≥ Windows 10



Operating Temperature



− 10 °C | + 50 °C (+ 14 °F | + 122 °F)



Length x Width x Height



230 x 62 x 68 mm (9.1 x 2.4 x 2.7")



Weight



690 g (1.52 lbs)
