GPSMAP® 8610xsv With Mapping and Sonar PART NUMBER 010-02091-03



10” Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen

• Features  a 10” full HD IPS touchscreen display preloaded with both BlueChart® g3  U.S. coastal and LakeVü HD maps featuring Navionics® data and Auto  Guidance¹ technology
• Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network
• Built-in support for the full suite of Garmin sonar capabilities
• Includes ANT® technology and Wi-Fi® networking
• SmartMode™ station controls for quick, one-touch access to the information you need

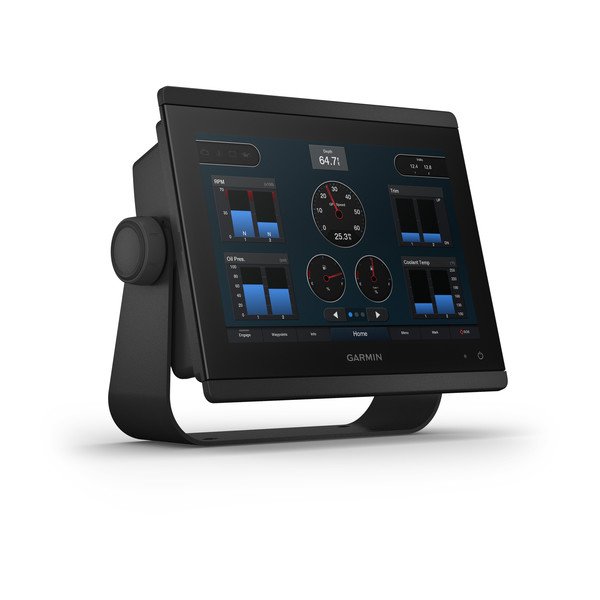

Serious  sport fishermen, cruisers, sailors and sail racers demand serious  equipment. The easy-to-use, easy-to-install GPSMAP 8610xsv  chartplotter/sonar combo delivers MFD performance in a combo-size  package. It features a 10” full HD IPS touchscreen display for wider  viewing angles, superior clarity and sunlight readability, even with  polarized sunglasses. Multiple displays can be flat mounted edge-to-edge  to create a sleek glass helm look or can be mounted flush.

Complete Sonar Support

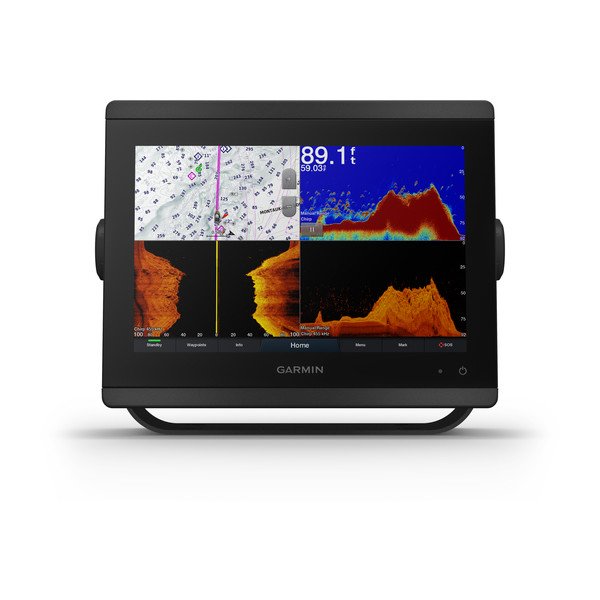

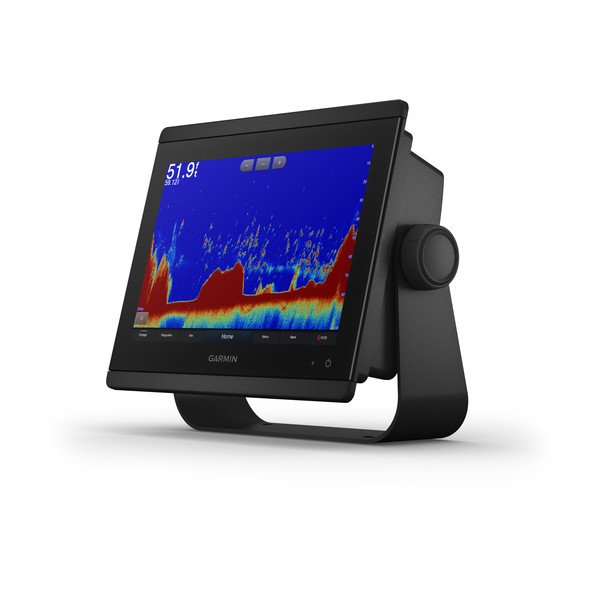

The  GPSMAP 8610xsv chartplotter/sonar combo offers built-in support for our  industry-leading sonar, including dual-channel 1 kW traditional CHIRP,  CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for  Ultra High-Definition scanning sonar (no black box required). It also  supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).

The Best of Garmin with the Best of Navionics

For  the most detailed, clear and concise charts and maps, this chartplotter  is preloaded with BlueChart g3 coastal cartography and LakeVü g3 inland  mapping featuring Navionics data. The charts and maps also include our  Auto Guidance technology, which shows a suggested route to a  destination¹, based on your boat’s specifications. The expandable memory  allows you to upgrade your maps with accessory map purchases such as  BlueChart® g3 Vision and LakeVü g3 Ultra.

Build Your Marine System

NMEA  2000 networking and the Garmin Marine Network allow you to easily build  your full marine electronics suite — from radar and autopilots to  cameras, instruments and forward-looking sonar — controlled from your  chartplotter and shared across multiple screens. In addition, our  exclusive OneHelm™ system coordinates many third-party manufactured  onboard marine products to bring full control of systems — such as  digital switching, lighting, stabilization and more — conveniently to  your chartplotter screen.

Full Connectivity

The  GPSMAP 8610xsv chartplotter has a premium-performance processor that  enables fast map drawing, superior networking, video distribution and  more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.

SmartMode Station Controls

Networked  sonar, radar, cameras, media and digital switching can be independent  or incorporated into SmartMode station controls. With SmartMode,  everything is designed to give you quick, one-touch access to the  information you need to ease high-stress situations such as docking.

Special Sailing Features

The  Garmin SailAssist™ feature provides data, displays and prerace guidance  to help you gain a competitive edge. Other sailing features include  laylines, enhanced wind rose, heading and course-over-ground lines, true  wind data fields and tide/current/time slider. Gauge displays provide  need-to-know information at a glance, including true and apparent wind  angle, set and drift, true or apparent wind speed, horizontal or  vertical graphs and a data bar with customizable fields.

The Ultimate Connected Boating App

Download  the ActiveCaptain app to your smartphone or tablet to manage your  marine experience from anywhere — from trip planning and prefishing to  updating software and purchasing maps.   1Auto Guidance is for planning purposes only and does not replace safe navigation operations
²When paired with a compatible smartphone Wi-Fi is a registered trademark of the Wi-Fi Alliance.



General

Physical dimensions10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)Display size8.6" x 5.4"; 10.1" diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal)Display resolutionWUXGA; 1920 x 1200 pixelsDisplay typetouchscreen IPS display (anti-glare finish)Weight5.2 lbs (2.4kg)Water ratingIPX7Polarized SupportPower consumption2.7 AAntennaInternal or external over NMEA 2000Mounting optionsBail,  flat or flush (Garmin does not offer any hardware or accessories for a  flat-mount installation. Professional tools and knowledge is required.)Receiver10 Hz GPS/GLONASS/GalileoGarmin Marine Network™ ports2Transmit power1 kW traditional; 1 kW CHIRP

Maps & Memory

Preloaded mapsBlueChart® g3 and LakeVü g3Accepts data cards2 microSD cards (on back)Waypoints5,000Track log50,000 points; 50 saved tracksRoutes100 (250 waypoints each)

Outdoor Recreation

Tide tables

Chartplotter Features

Garmin Radar compatibleGarmin Sonar compatibleyesGarmin SmartMode compatible (customizable monitor presets)Supports AIS (tracks target ships position)Supports DSC (displays position data from DSC-capable VHF radio)Supports FUSION-Link™ compatible radiosGSD™ Black Box sonar supportGCV™ Black Box sonar supportActiveCaptain compatibleyesGRID™ (Garmin Remote Input Device) compatibleWireless remote compatibleSailing Features

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capableDual-beam (77/200 kHz) sonar capableFrequencies supportedTraditional: 50/200, 77/200, 83/200
Single Channel CHIRP: 40-250
Dual Channel CHIRP: 40-250
SideVü/ClearVü: CHIRP 260/455/800
Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,020-1,230 kHz (dependent on transducer)CHIRP sonar technologyYes (Built-in)ClearVüyesSideVüyesMaximum depth5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)

Connections

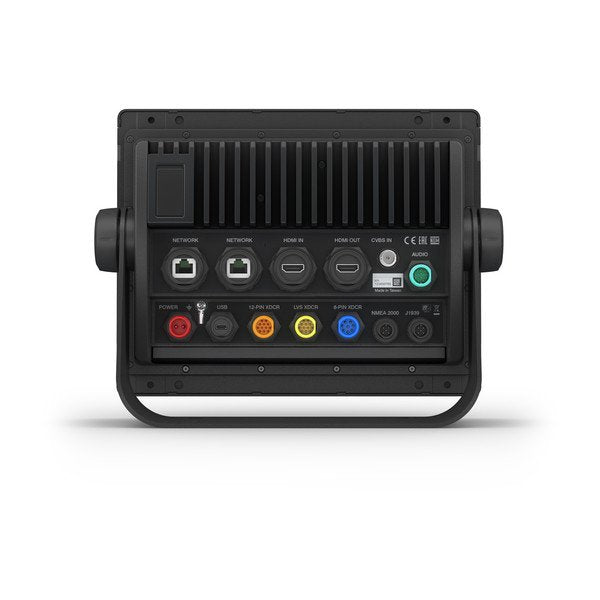

NMEA 2000® compatibleTransducer pin numbers1 – LVS sonar, 1 – 12 pin scanning sonar, 1- 8 pin sonarNMEA 0183 input ports1 differentialNMEA 0183 output ports1 differentialVideo input ports1 - BNC composite 1 - HDMI (HDCP compliant)Video output ports1 HDMIWireless connectivityyesJ1939 Compatible

Additional

Additional

• Supports spoken audio alerts



• GPSMAP 8610xsv
• Power cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector
• Bail mount with knobs
• Flush mount kit
• Sun cover
• Trim piece snap covers
• Documentation
