GT54UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer PART NUMBER 010-12909-00

All-in-one Transducer

• One  transducer provides the highest resolution ClearVü and SideVü scanning  sonar images available and amazingly clear high wide CHIRP traditional  sonar
• High wide CHIRP traditional sonar provides remarkably clear target separation and definition
• See incredibly detailed images of fish and structure up to 200’ below your boat with 800 kHz ClearVü sonar
• Two SideVü sonar frequency settings (455/1200 kHz) provide options for extended range of up to 500’
• Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

Ultra-high Clarity

The  GT54 Ultra High-Definition all-in-one transducer provides image details  so clear and precise, you can actually see fish hanging just off  branches of submerged trees, brush and rocks. You can see size  differences between bigger and smaller fish and even see individual fish  swimming in bait balls. You get the highest resolution ClearVü and  SideVü scanning sonar images available plus amazingly clear high wide  CHIRP traditional sonar1 — all in one transducer.

Ultra-high Performance

Ultra  High-Definition scanning sonar provides extended range and depth  performance. It shows you incredibly detailed images of fish and  structure up to 200’ below your boat with 800 kHz ClearVü, while two  SideVü sonar frequency settings (455/1200 kHz) provide options for  extended range of up to 500’. It’s easy to install with included transom  and trolling motor mounts so you can start fishing faster. ¹For use with GPSMAP® 8400xsv/8600xsv chartplotter/sonar combos

 FrequencyCHIRP  High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz); UHD  SideVü 1,200kHz (1020-1230 kHz); CHIRP SideVü 455 kHz  (425-485 kHz)PowerCHIRP Traditional 350 W; ClearVü/SideVü 350 WBeamwidthCHIRP: 24°-16°
ClearVü: 0.94°x60° @ 800 kHz
SideVü: 1.62°x50°
UHD SideVü: 0.441°x52° @ 1200 kHzMaximum depthCHIRP: 800 ft.; ClearVü 200 ft.; SideVü 500'; UHD SideVü 125'Depth/Speed/TemperatureDepth and TemperatureNumber of pins12Cable length20 ft.Supported deadrise/Transom angles0°-70° degree transom

• GT54UHD-TM transducer

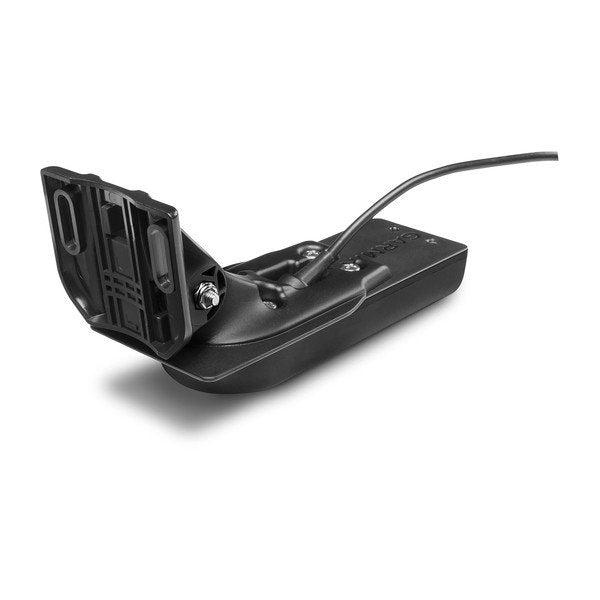

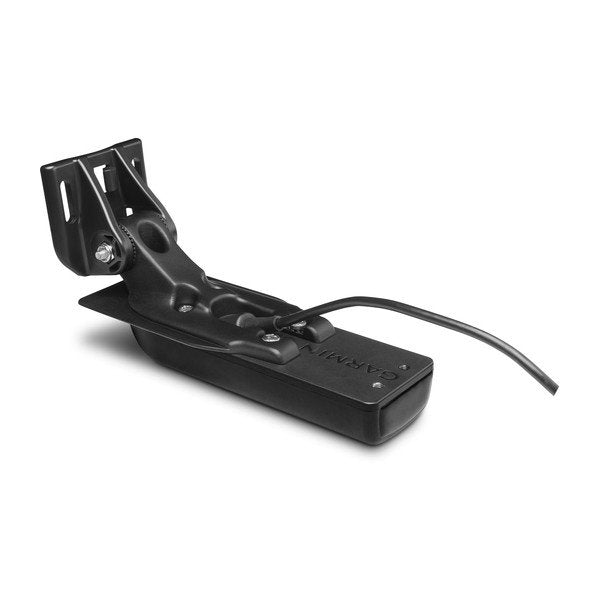

• Transom mount

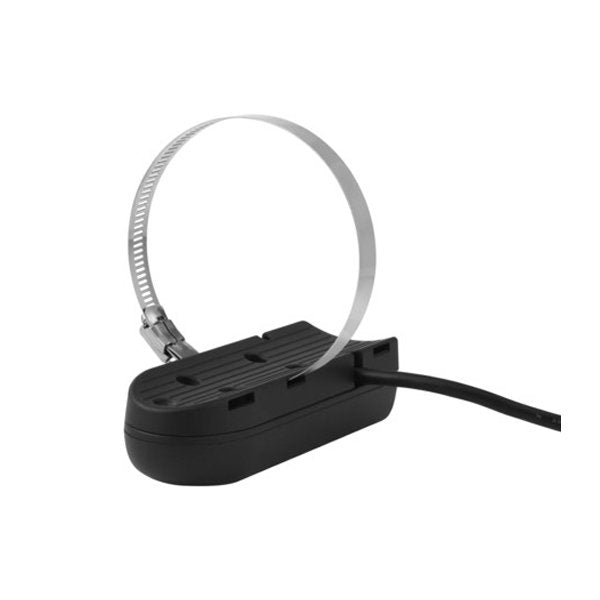

• Trolling motor mount
• Mounting hardware
• Documentation
