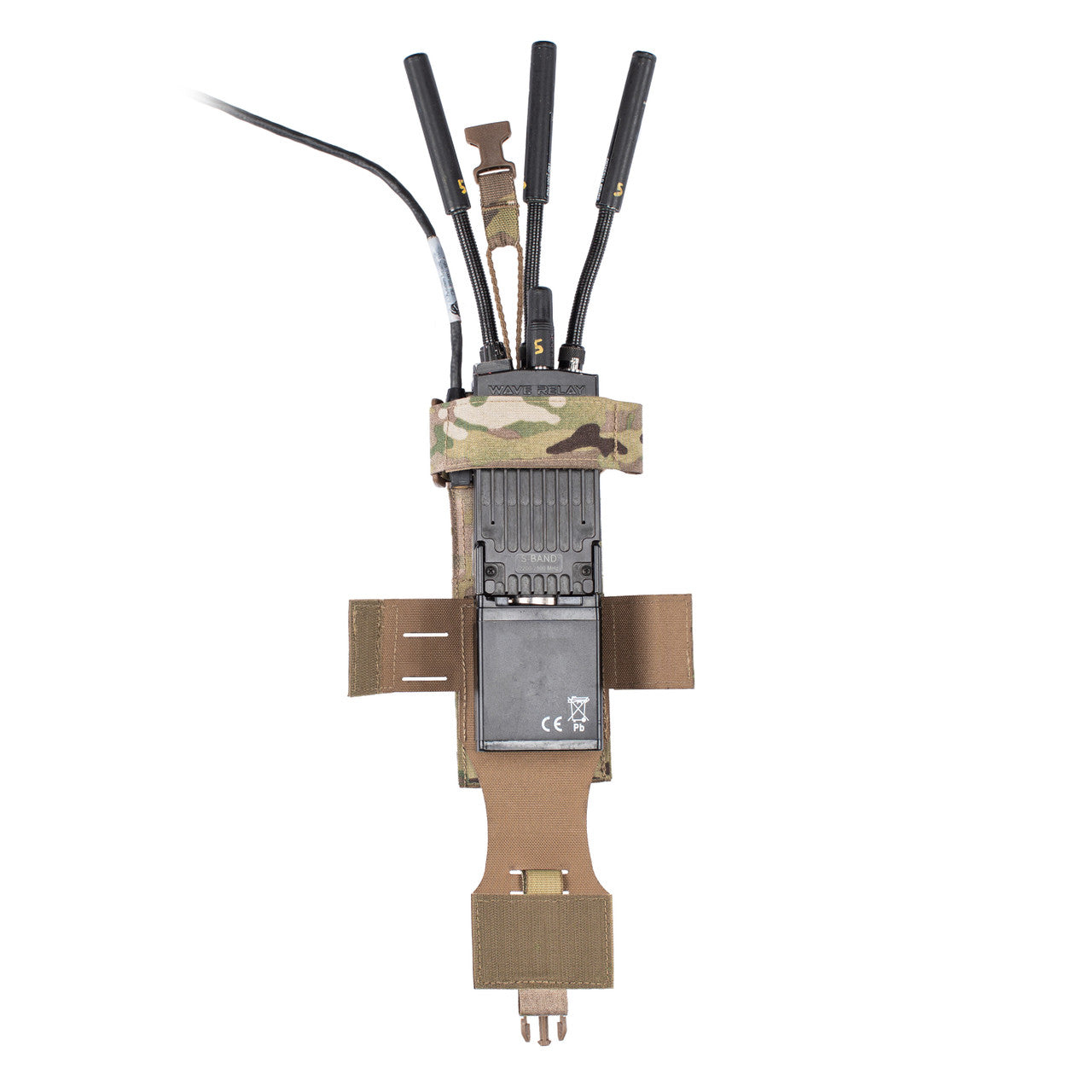

Multi Platform Radio Chassis Mk5



The Multi-Platform Radio Chassis (MPRC) Mk5 is a modular and scalable  approach to radio retention that can accommodate a wide range of radio  models. The chassis is a three-part system that allows the internal  dimensions of the MPRC to expand and contract as needed. With this wide  fitment range, almost any radio model can be properly secured and  ventilated while maintaining the full range of functions on the  handset.

The chassis backer is a semi-rigid board that can be  mounted to body armor, chest rigs, and packs using its two MOLLE  columns, or on the waist via the integrated belt pass-through. The board  is stiff enough to provide a firm mounting surface for any radio and  keep it immobile regardless of size.

The base of the MPRC Mk5 is a tri-flap battery cup that is MOLLE  adjustable for height on the front of the chassis backer. The MOLLE  interface provides users with a wide range of adjustability without  sacrificing any durability or structural integrity in the chassis. The  tri-fold flaps enable the user to swap batteries without removing the  radio or unplugging any wires and can be resecured with an additional  layer of redundancy via the fastex buckle that runs through the front.

The  top strap can be threaded through the chassis backer in one of two  slots to further accommodate the wide variety of radio sizes, and will  help the user configure the MPRC Mk5 so that it does not impede buttons  or toggles on the handset.

Recommended Radios for use with the MPRC Mk5

- Persistent Systems MPU5

- L3/Harris AN/PRC-163

- L3/Harris AN/PRC-152

- Thales AN/PRC-148

- Motorola XTS 5000

- Motorola APX 8000

- Motorola APX 7000

- & more…

Smallest Recommended Radio Compatibility dimensions*
5.5” Tall  - 2.75” wide  - 1.25” Deep

Largest Recommended Radio Compatibility dimensions*

12+” Tall  - 4” wide  - 4” Deep

*These dimensions be further expanded or retracted via micro adjustments to the Veclro on the battery cup and top strap.

NOTE: While Baofeng and other similar products will fit in  the MPRC Mk5, we recommend considering our Liberty Dynamics Flash Bang  Pouch for small handsets.  It provides secure retention, and a much more compact solution for smaller radios.
