VR-76

Overview

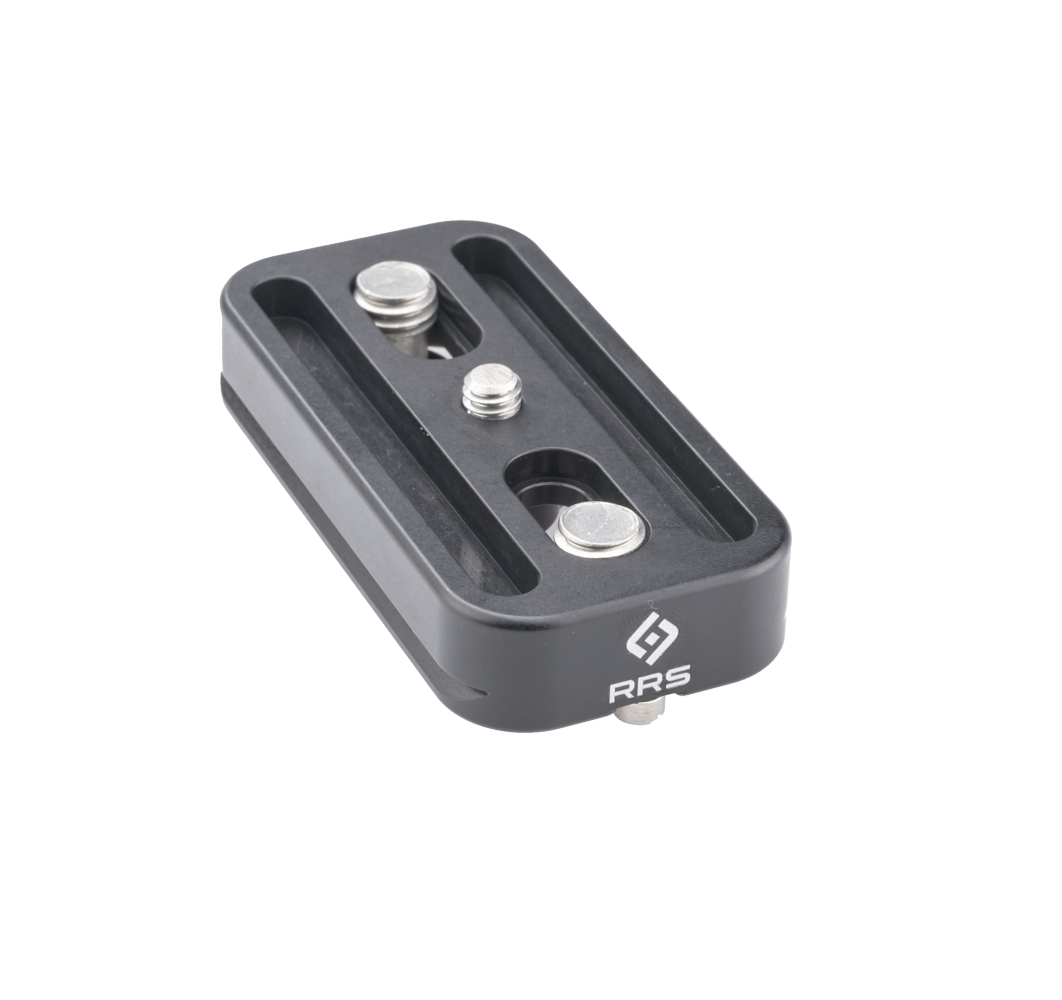

The  Really Right Stuff VYCE Rail VR-76 is designed to securely hold the RRS  VYCE to any RRS quick-release clamp. The VR-76 is machined from a solid  block of aircraft grade aluminum, and is designed and manufactured in  Lehi, UT.

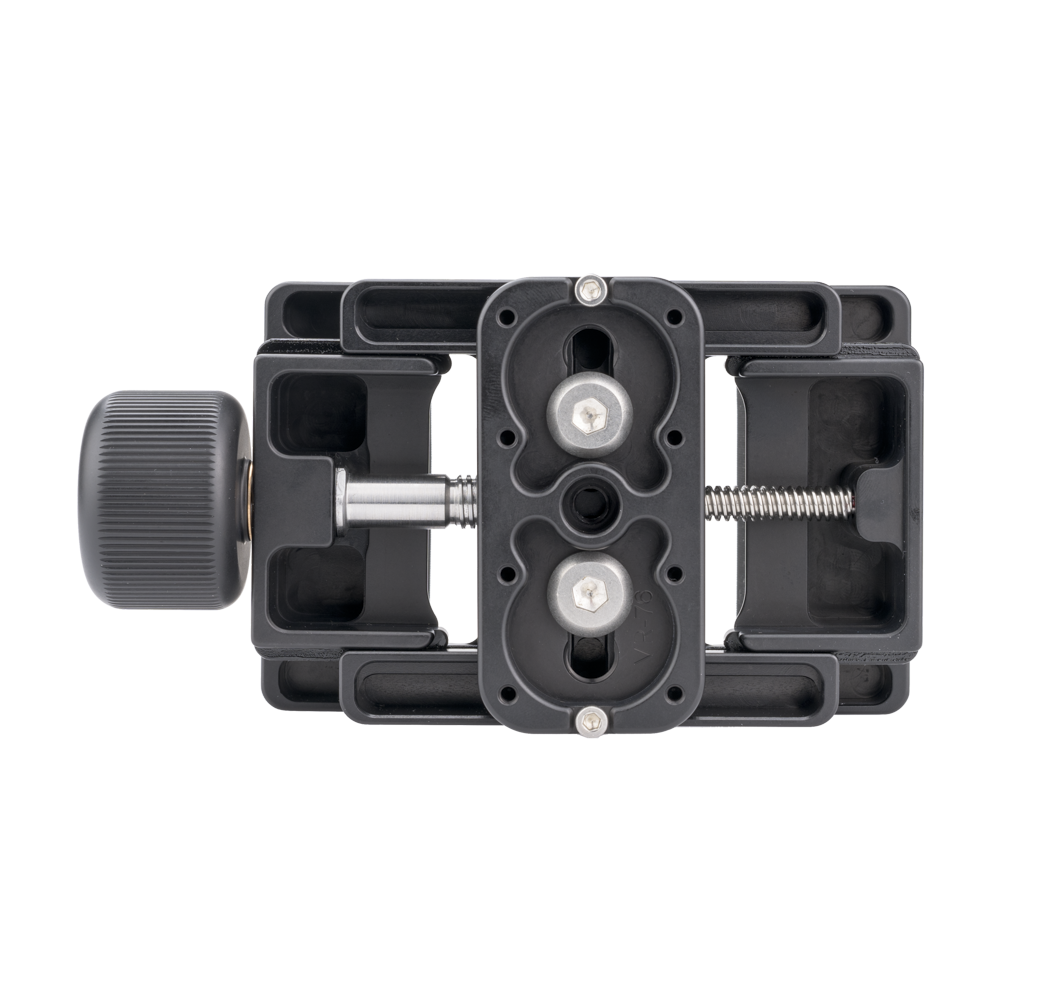

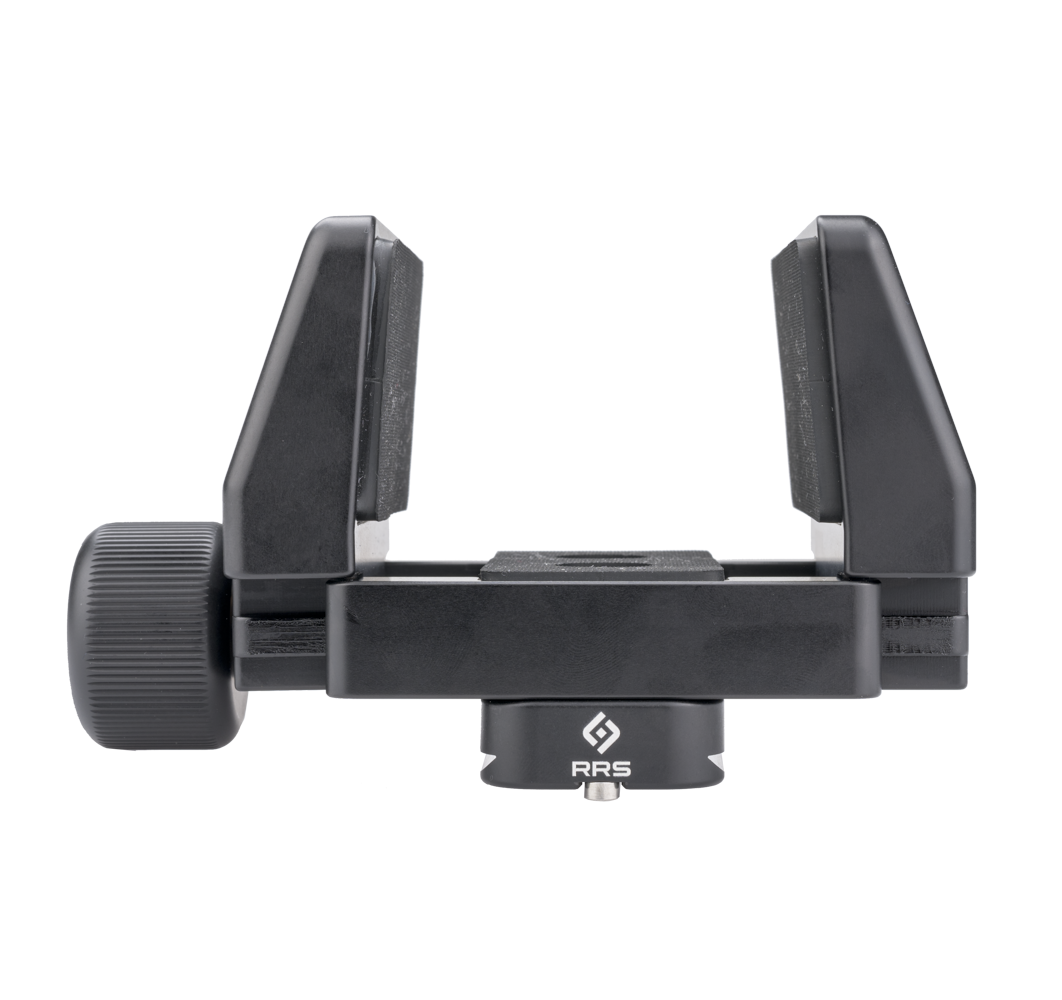

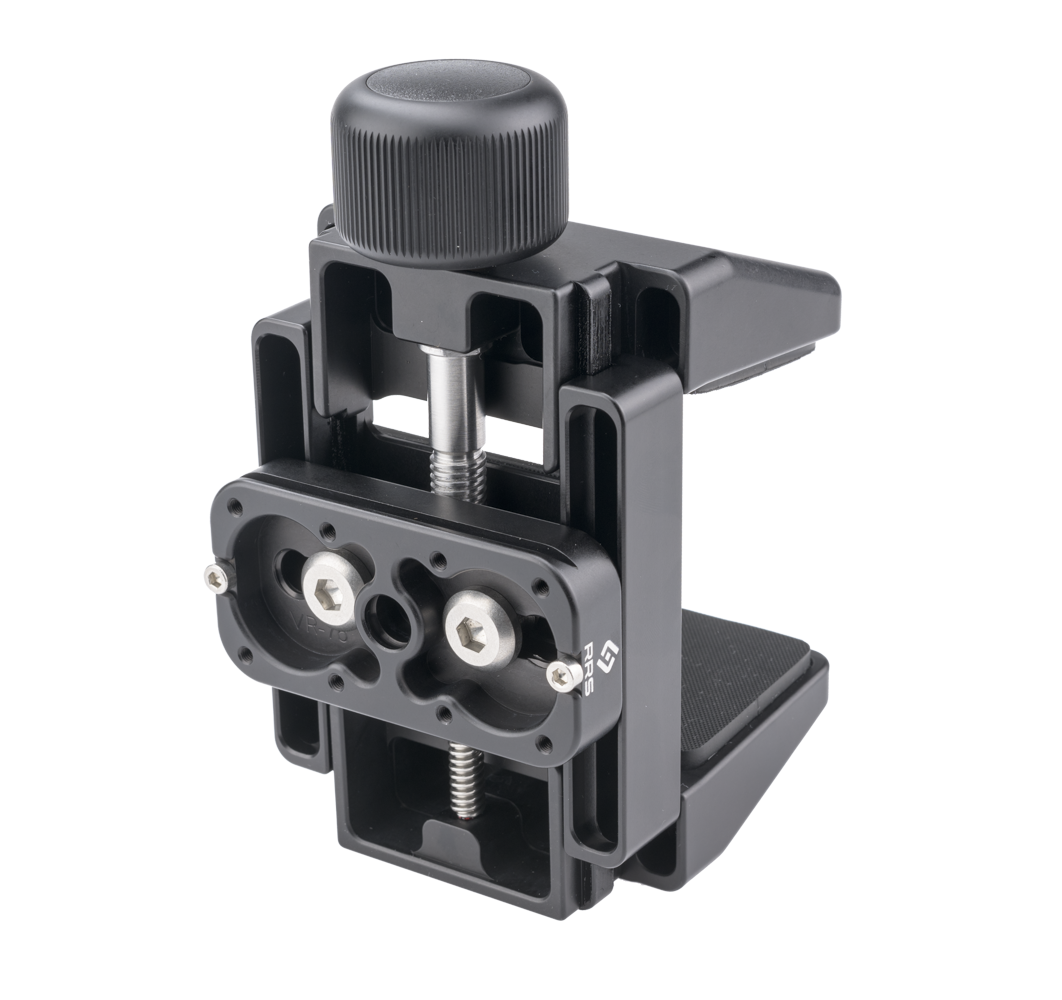

The VR-76 is an all-purpose QR plate, and is  specifically designed to enhance the mount time of the VYCE to RRS ball  heads and leveling bases. The QR mounting feature allows existing  equipment, typically without pre-existing mounting plates, to be  securely mounted to tripods and ball heads while maintaining consistent  performance with your RRS support system.

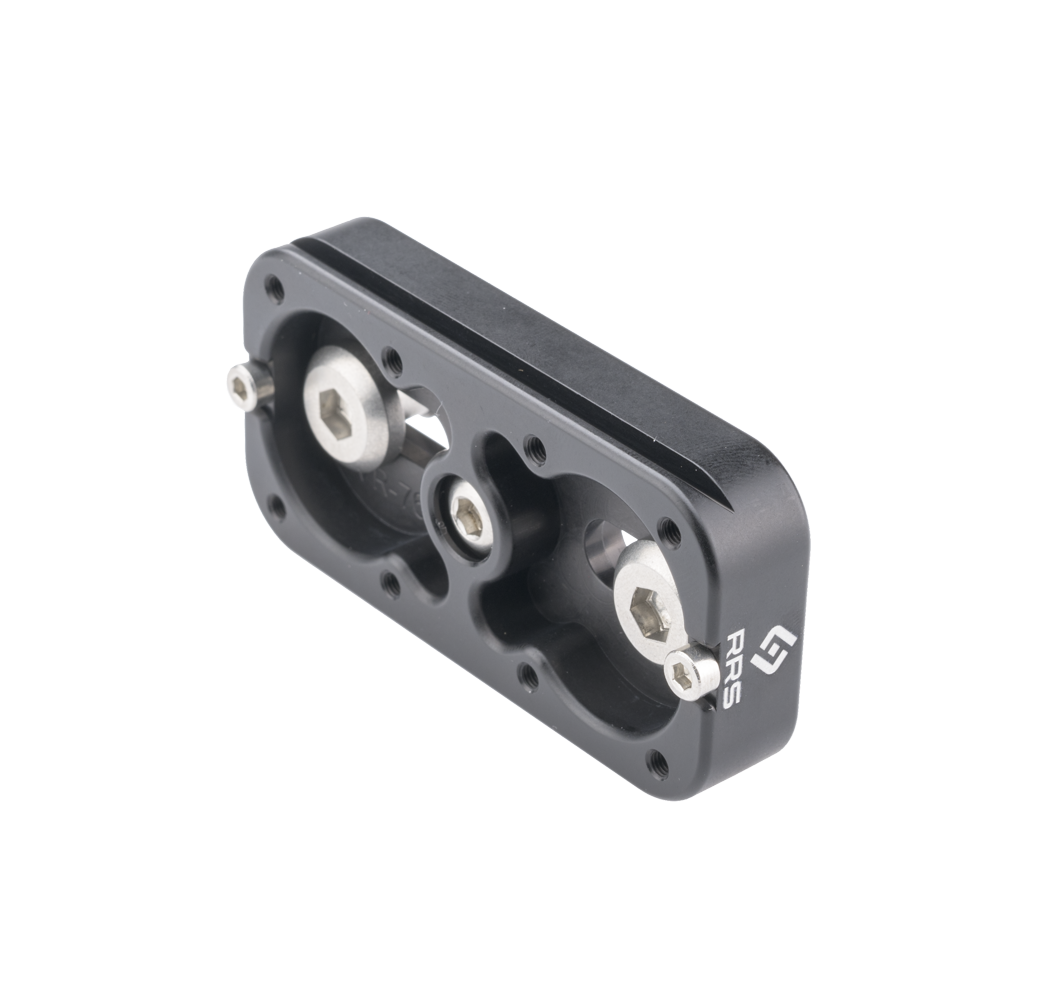

The VR-76 possesses the  RRS standard 1.5” dovetail, and allows users to find a center of  balance along 76mm of mounting surface. The bottom of the VR-76 has two  3/8" and one 1/4x20 mounting accessory ports, allowing a wide range of  mounting options.

The VR-76 is CNC machined and type III hard  anodized. They are built from the ground up for maximum functional  performance, ruggedness, ergonomic fit, and finish.

Features

• All corners and edges are rounded for better feel and ergonomics
• Tumbled, satin finish
• CNC machined 6061-T6
• Hard-Anodized; Type-3 Black
• Two 3/8"-16 threaded accessory mounting socket
• 1/4"-20 threaded accessory mounting socket

Specs

• Length: 3.0"/ 76mm
• Width: 1.5"/ 38mm
• Thickness: 0.6"/ 14mm
• Weight: 1.9oz/ 54g

In the Box

1. (1) RRS VR-76 Rail
2. (2) 3/8"-16 captive mounting screws
3. (1) 1/4"-20 captive mounting screw
4. (2) M3 stop screws
5. (1) M2.5 hex key
6. (1) 5/32" hex key
7. (1) 7/32" hex key
